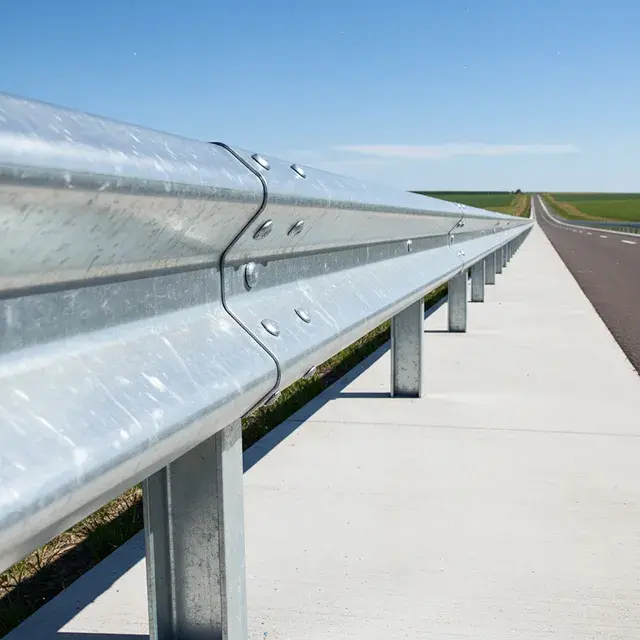

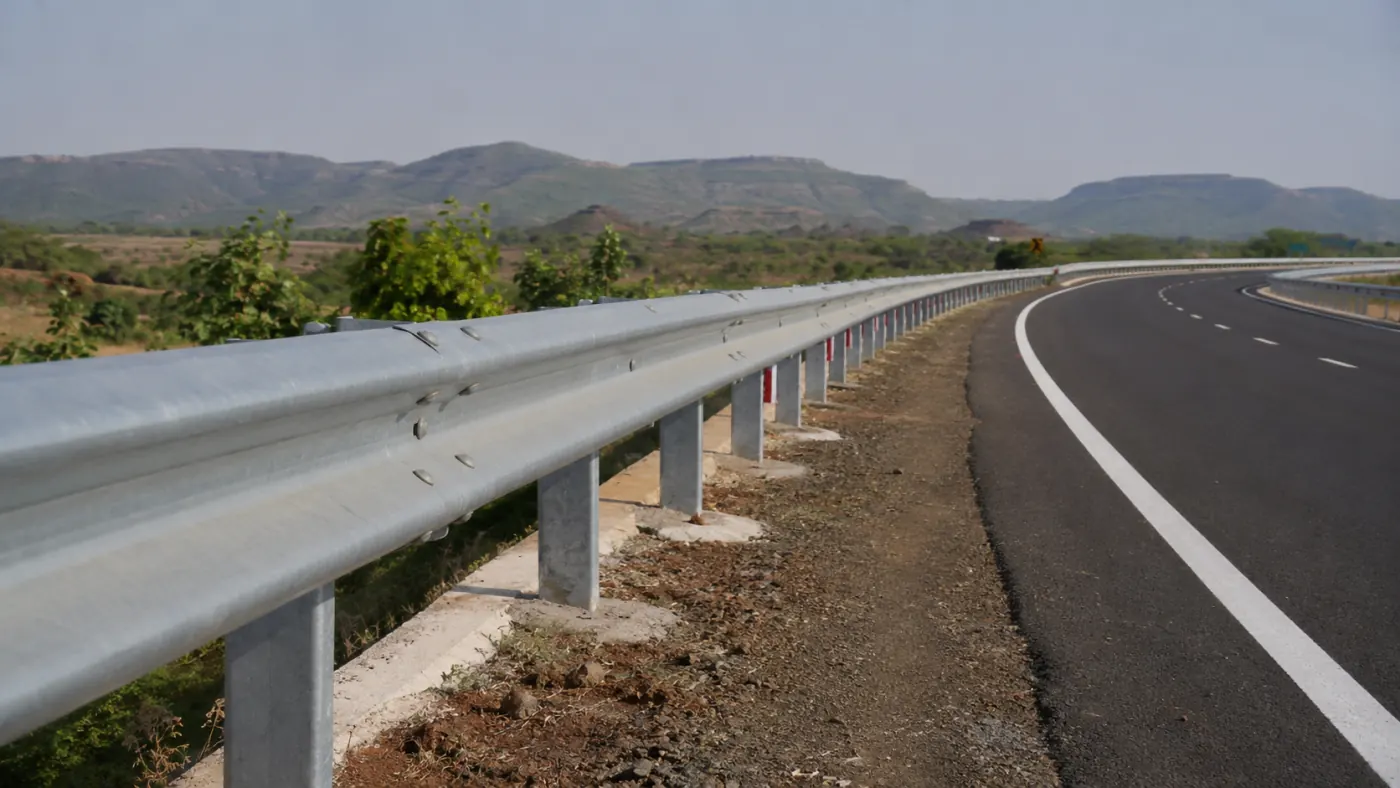

W Beam Crash Barrier

High-performance metal beam crash barriers engineered for highways, expressways & critical road safety applications.

Product Performance Metrics

Real-time statistics showcasing our product excellence

1,200,000 rm
Annual Production Capacity
25+
Export Countries
ISO 9001:2015
Quality Certification
100,000 rm
Monthly Production Capacity
ParameterSpecification
Product TypeW Beam Crash Barrier
MaterialHigh-grade galvanized steel
Beam Thickness3mm
Surface FinishHot-dip galvanized (as per IS standards)
Length3.0 m / 4.0 m (standard)
Post TypeC-post / Sigma post
Net Weight25 KG / RM
Quality StandardsMoRTH 803, ISO 9001:2015, EN 1317, IRC 119

Product Overview

YNM Safety is a trusted W beam crash barrier manufacturer delivering high-quality metal beam crash barriers designed to provide maximum roadside safety and impact resistance. Our W beam crash barriers are widely installed on highways, expressways, bridges, medians, and sharp curves to prevent vehicles from veering off the roadway and to minimize collision severity. Manufactured using premium-grade galvanized steel, YNM Safety's metal beam crash barriers comply with national and international road safety standards. The unique W-profile absorbs and dissipates kinetic energy during impact, reducing vehicle damage and safeguarding passengers. As one of the leading W beam crash barrier manufacturers in India, we ensure consistent quality, long service life, and corrosion resistance even in harsh weather conditions. Our metal beam crash barrier manufacturing process follows strict quality control norms, making YNM Safety a preferred choice for government projects, infrastructure developers, and EPC contractors seeking reliable and cost-effective road safety solutions.

Detailed Specifications

Complete product information including dimensions, origin, and manufacturing details

Country of Origin
India
Manufacturing Location
Telangana, Delhi, MP, Kolkata and Gujarat
Net Weight
25 KG / RM
Packing Type
Bundled with steel straps / As per export standard packing
Quality Standards
MoRTH 803, ISO 9001:2015, EN 1317, IRC 119
Minimum Order Quantity (MOQ)
100 meters / 1 metric ton / Project-based
HS Code
73089090

Export Availability

Our W Beam Crash Barrier is available and exported to 25+ worldwide

🌎

North America

us flagUnited Statesca flagCanadamx flagMexico
🌍

Europe

de flagGermanygb flagUnited Kingdomfr flagFranceit flagItalyes flagSpainOther EU countries
🌏

Asia / Asia Pacific

cn flagChinain flagIndiajp flagJapankr flagSouth Koreaau flagAustraliaid flagIndonesiath flagThailandmy flagMalaysia
🌎

Latin America

br flagBrazilar flagArgentinaco flagColombiamx flagMexico
🌍

Middle East & Africa

sa flagSaudi Arabiaae flagUnited Arab Emiratesza flagSouth Africa
🌏

Oceania

au flagAustralianz flagNew Zealand
25+
Countries
500+
Active Clients
99.2%
On-Time Delivery

Product Specification

Key features and product advantages of our W Beam Crash Barrier

W Beam Crash Barrier technical specifications and coating system — YNM Safety
Features

Key Features & Benefits

Manufactured by experienced metal beam crash barrier manufacturers
High tensile steel for superior impact resistance
Proven W-profile design for energy absorption
Hot-dip galvanized coating for corrosion protection
Easy installation and low maintenance
Suitable for highways, expressways & bridge approaches
Long service life in extreme weather conditions

Application Areas

Where our W Beam Crash Barrier provides maximum road safety and protection

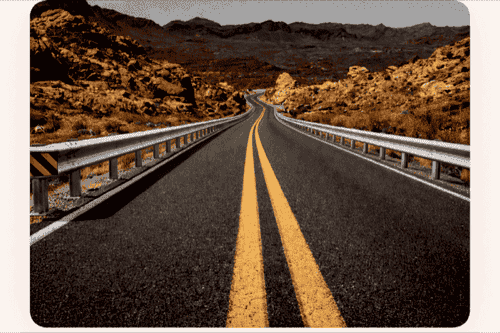

W Beam Crash Barrier application example 1 — YNM Safety road infrastructure projects India

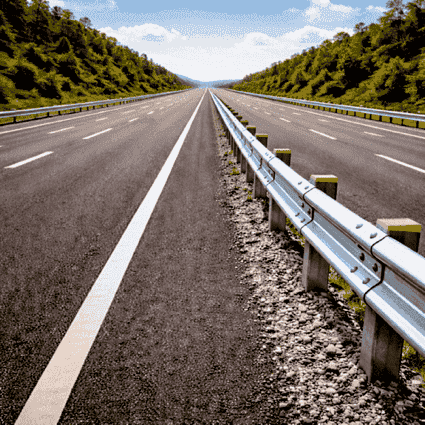

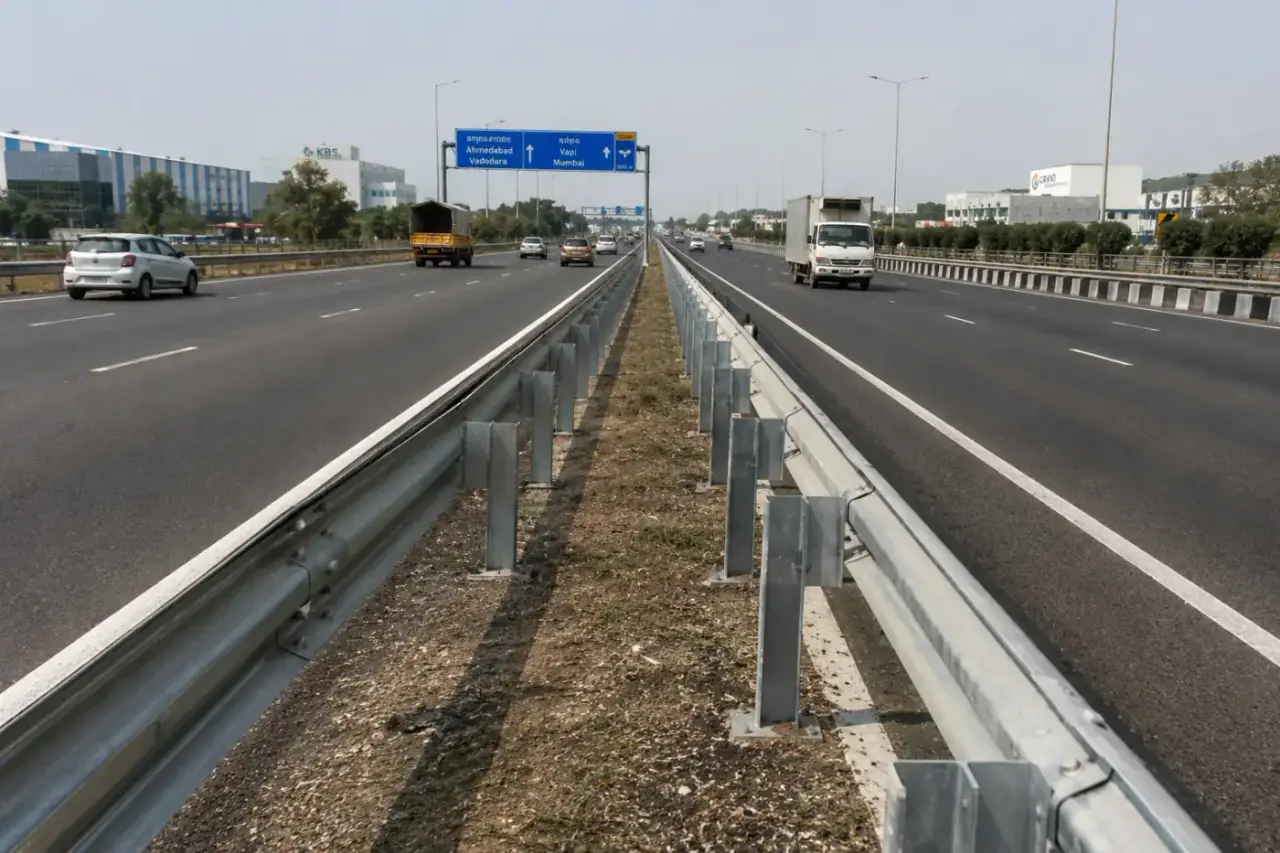

Highways & Expressways

High-performance W beam crash barriers by YNM Safety ensure maximum safety on high-speed highways and expressways.

W Beam Crash Barrier application example 2 — YNM Safety road infrastructure projects India

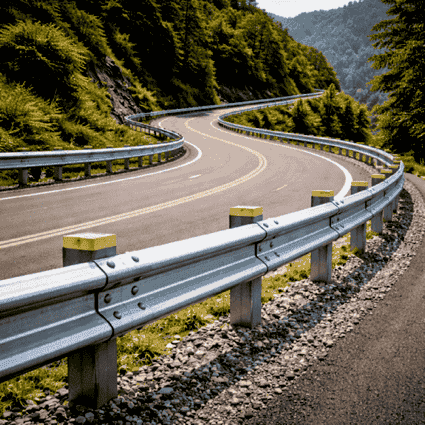

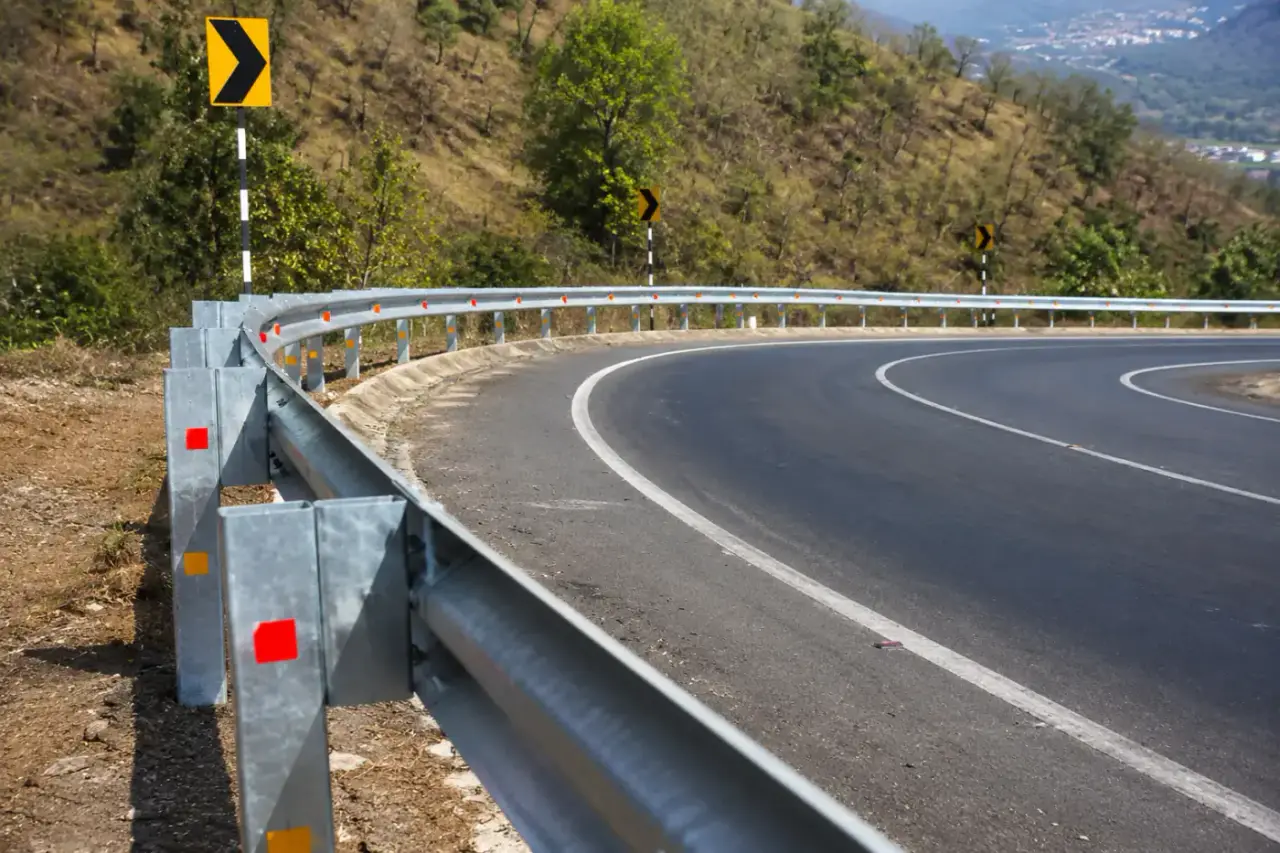

Curves & Sharp Bends

YNM Safety W beam crash barriers provide reliable protection at dangerous curves and sharp bends.

W Beam Crash Barrier application example 3 — YNM Safety road infrastructure projects India

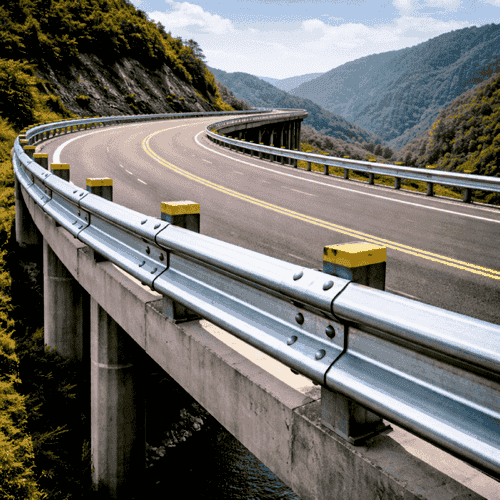

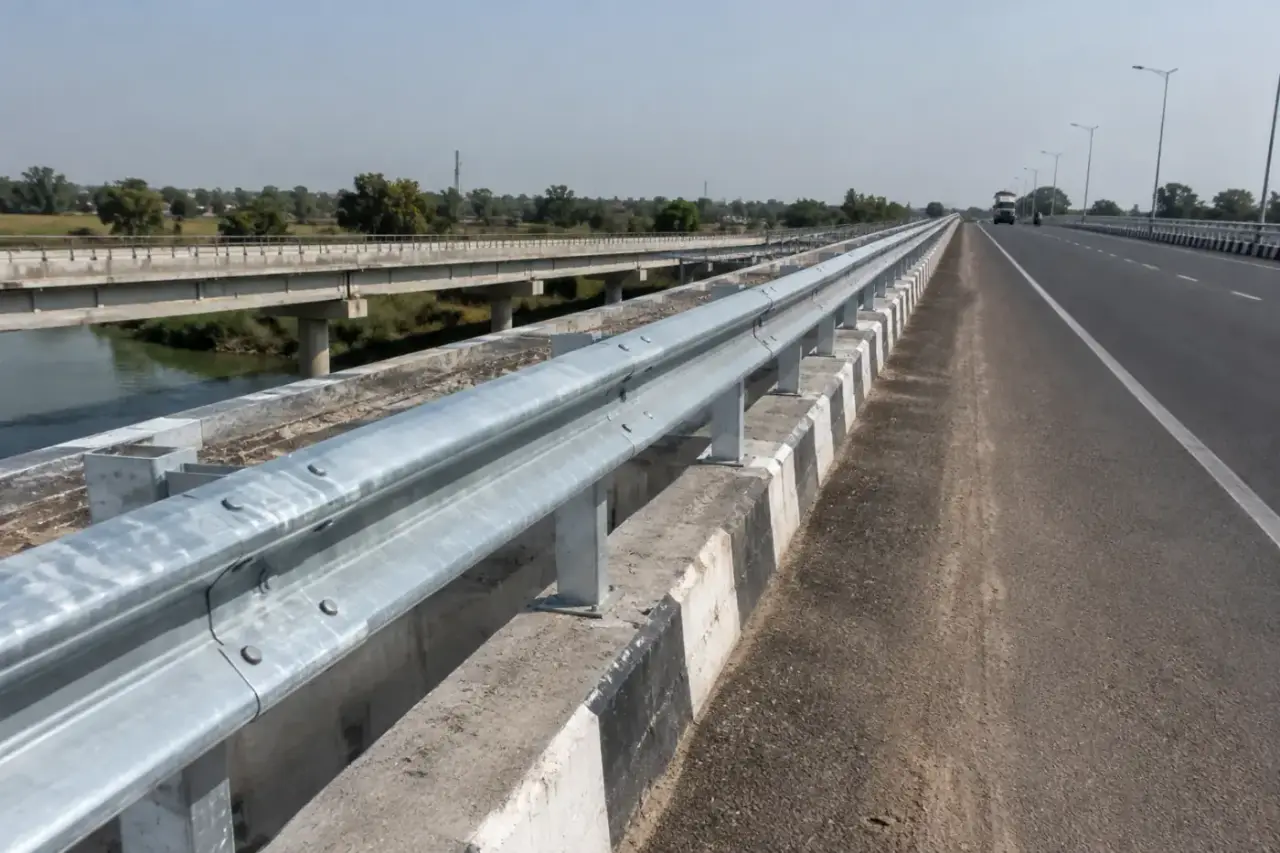

Bridges & Flyovers

Robust W beam crash barriers from YNM Safety safeguard vehicles on bridges and flyovers.

W Beam Crash Barrier application example 4 — YNM Safety road infrastructure projects India

Roadside Hazards & Embankments

YNM Safety's metal beam crash barriers protect vehicles from roadside hazards and embankments.

W Beam Crash Barrier application example 5 — YNM Safety road infrastructure projects India

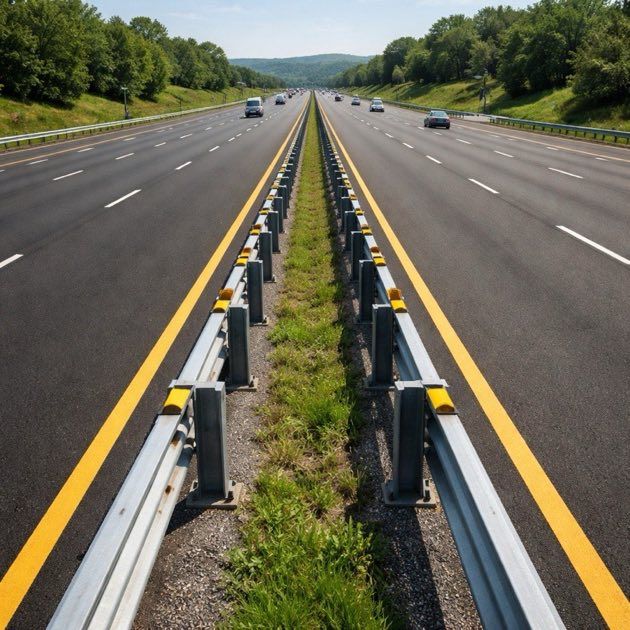

Medians & Central Dividers

YNM Safety W beam crash barriers are ideal for medians and central dividers.

W Beam Crash Barrier application example 6 — YNM Safety road infrastructure projects India

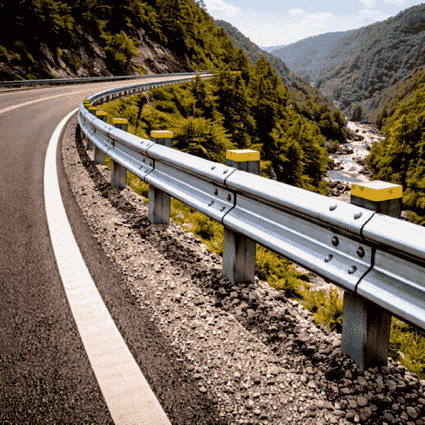

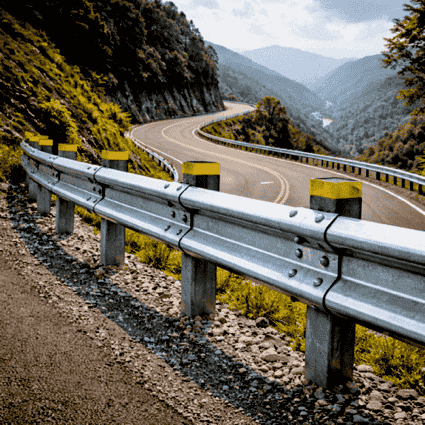

Mountain & Ghat Roads

YNM Safety provides W beam crash barriers for safe travel on mountain and ghat roads.

Market Growth

W-Beam Crash Barrier Market Growth – Global Outlook

💰
$2.8B
Current Market Size (2024)
🚀
$4.2B
Projected by 2030
📈
4-6%
CAGR Growth Rate
🛣️
65M+
Global Highway Km

The global W-beam crash barrier market is growing steadily due to large-scale investments in road safety infrastructure, national highway expansion, and strict government regulations aimed at reducing road fatalities. Rising demand for metal beam crash barriers across highways, expressways, bridges, and urban roads has positioned manufacturers like YNM Safety as key contributors to this growth. With strong adoption in Asia-Pacific, the Middle East, Africa, and North America, the market is expected to register a CAGR of 4–6%, driven by new installations and replacement of outdated safety barriers.

Regional Market Share

MarketShare
Asia Pacific35%
North America25%
Europe20%
Middle East & Africa12%
Latin America8%

Market Size Growth (in Billion USD)

$2.1B
2021
$2.3B
2022
$2.5B
2023
$2.8B
2024
$3.1B
2025
$3.4B
2026

Key Growth Factors of W Beam Crash Barrier

01
Government mandates for road safety and crash protection systems
02
Rapid construction of highways, expressways, and smart roads worldwide
03
Growing demand for galvanized steel W-beam crash barriers due to durability and cost efficiency
04
Increasing vehicle density and focus on accident impact mitigation
05
Upgradation of old guardrails with high-performance metal beam crash barriers
06
Strong presence of reliable manufacturers like YNM Safety – W-Beam Crash Barrier Manufacturers

Manufacturing Process of W Beam Crash Barrier

Our Metal Beam Crash Barriers are manufactured through a controlled, quality-driven process to ensure maximum strength, durability, and compliance with national and international road safety standards.

01

Raw Material Procurement & Inspection

High-quality steel coils are sourced from certified suppliers. Each batch undergoes chemical and mechanical testing to ensure conformity with IS, ASTM, and MoRTH specifications.

02

Steel Coil Slitting & Cutting

Steel coils are precision-slit and cut into required widths and lengths based on W-Beam, Thrie-Beam, or Double W-Beam specifications to maintain dimensional accuracy.

03

Cold Roll Forming

The cut steel sheets are passed through advanced roll-forming machines to achieve the exact crash barrier profile with uniform thickness and consistent geometry.

04

Punching & Slot Formation

Computer-controlled punching machines create bolt holes and slots with high precision to ensure easy installation and perfect alignment at site.

05

End Finishing & Edge Trimming

Barrier ends are trimmed, deburred, and finished to eliminate sharp edges, improving safety during handling and installation.

06

Surface Preparation (Degreasing & Pickling)

Formed beams are thoroughly cleaned through degreasing and pickling processes to remove oil, rust, and impurities, ensuring superior coating adhesion.

07

Hot-Dip Galvanizing

The beams are hot-dip galvanized as per IS 4759 / ASTM A123 standards, providing a uniform zinc coating for long-term corrosion resistance in harsh environments.

08

Quality Testing & Inspection

Finished barriers undergo strict quality checks, including coating thickness, dimensional accuracy, mechanical strength, and visual inspection before approval.

09

Packing, Storage & Dispatch

Approved crash barriers are securely bundled, labeled, and stored in covered areas. Products are then dispatched with proper documentation to ensure safe and timely delivery.

Factory & Quality Proof

See our manufacturing facility and quality certifications that ensure premium product quality

Our Manufacturing Facility

State-of-the-art production facility ensuring consistent quality

Coming Soon

Factory images and facility tour will be available shortly

Under Preparation

Quality Standards

Compliance with national and international road safety standards

MoRTH 803

Ministry of Road Transport & Highways Section 803 Specifications

ISO 9001:2015

Quality Management System Certification

EN 1317

European Standard for Road Restraint Systems

IRC 119

Indian Roads Congress Guidelines for Traffic Safety Barriers

Customer Success Stories

Real results from satisfied customers who chose W Beam Crash Barrier

BEKEM INFRA PROJECTS PVT. LTD

Hyderabad

20,000 mts
Quantity Supplied
2024
Project Year
100%
On-Time Delivery

"Supplied 20,000 meters of W-Beam Crash Barriers for highway safety infrastructure development project in Hyderabad. Our high-quality galvanized steel barriers provided excellent impact resistance and long-term durability for this critical road safety installation."

ANUSHA PROJECTS PRIVATE LIMITED

Hyderabad

15,360 mts
Quantity Supplied
2024
Project Year
100%
On-Time Delivery

"Delivered 15,360 meters of W-Beam Crash Barriers for expressway median and roadside protection in Hyderabad. The installation enhanced road safety standards and reduced accident severity on this busy expressway corridor."

VRIDDHI INFRATECH INDIA PRIVATE LIMITED

Hyderabad

28,500 mts
Quantity Supplied
2024
Project Year
100%
On-Time Delivery

"Supplied 28,500 meters of W-Beam Crash Barriers for comprehensive highway safety infrastructure project in Hyderabad. Our metal beam crash barriers were installed across bridges, curves, and high-risk zones, ensuring maximum protection for road users."

W Beam Crash Barrier Manufacturers — Supply & Standards

Technical and commercial context for contractors sourcing metal beam guardrails from YNM Safety.

W beam crash barrier manufacturers for NHAI & state highways

YNM Safety manufactures W beam metal crash barriers for longitudinal roadside and median protection on national highways, expressways, ring roads, and bridge approaches. As experienced W beam crash barrier manufacturers in India, we supply galvanized beam sections, C-posts and sigma posts, spacer blocks, bolts, and anchor hardware as a coordinated package so contractors avoid mismatched components on site.

Typical supply aligns with MoRTH Section 803, IRC 119, and common NHAI BOQ formats for 2.7 mm / 3.0 mm W-profile guardrail. Share your tender clause, running-meter quantity, and post spacing for specification matching and test documentation.

Hot-dip galvanizing, steel grade & export-ready packing

Beams are produced from high-tensile steel with hot-dip galvanizing per IS 4759 (commonly 550 g/m² coating mass for highway projects). Bundled dispatch, running-meter marking, and export packing help EPC teams receive material ready for installation along ghat roads, urban corridors, and greenfield alignments.

Related systems from the same manufacturing group include thrie beam crash barriers, double W beam barriers, and complementary road safety furnitures for work zones.

Quote, BOQ support & pan-India dispatch

For W beam crash barrier price per running meter, MOQ, and freight to your state, submit your BOQ on ynmsafety.com/get-quote or email sales@ynmsafety.com. Our team supports government tenders, private highway packages, and export inquiries to 50+ countries.

Frequently Asked Questions

Commercial and technical answers for highway contractors, EPC companies, and government tender bidders sourcing W beam crash barriers from YNM Safety.

YNM Safety · W Beam Crash Barrier

Related Products

Explore other Metal Beam Crash Barrier (MBCB) products from our range

Thrie Beam Crash Barrier product gallery thumbnail — YNM Safety manufacturers India

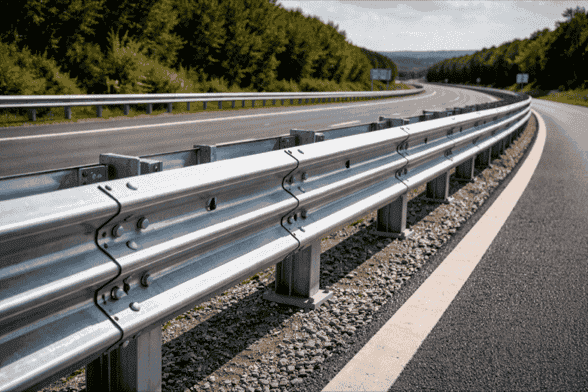

Thrie Beam Crash Barrier

High-strength thrie beam crash barriers manufacturers delivering superior impact resistance and road safety protection for highways, bridges, and infrastructure projects worldwide.

View Details

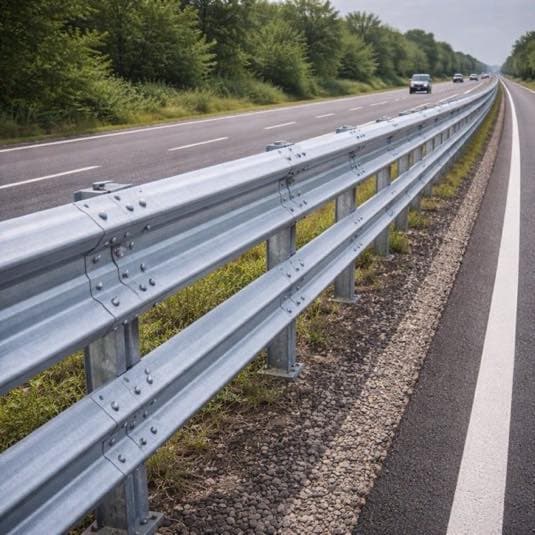

Double W Beam Crash Barriers product gallery thumbnail — YNM Safety manufacturers India

Double W Beam Crash Barriers

High-strength double W beam crash barrier manufacturers delivering superior impact resistance, durability, and enhanced road safety for global infrastructure projects.

View Details

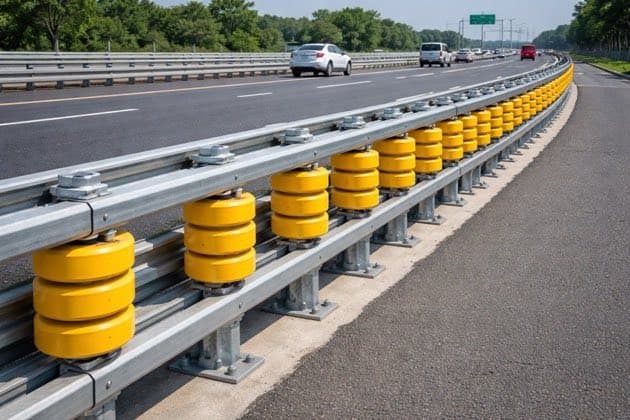

Roller Beam Crash Barriers product gallery thumbnail — YNM Safety manufacturers India

Roller Beam Crash Barriers

YNM Safety manufactures advanced roller beam crash barriers engineered to reduce collision impact, minimize vehicle damage, and enhance road safety across highways, curves, and high-risk zones.

View Details
Attenuator product gallery thumbnail — YNM Safety manufacturers India

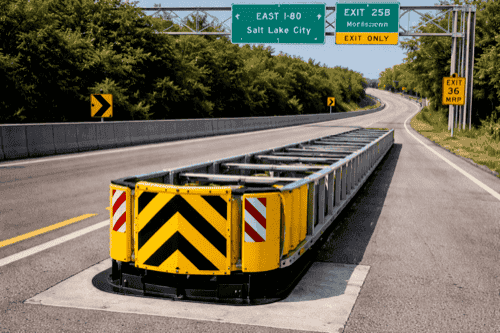

Attenuator
